GitHub Link: https://github.com/DefinetlyNotAI/Logicytics
Last Commit: 2 Hours Ago


Logicytics: System Data Harvester

Logicytics is a cutting-edge tool designed to meticulously harvest and collect a vast array of Windows system data for forensic analysis. Crafted with Python 🐍, it's an actively developed project that is dedicated to gathering as much sensitive data as possible and packaging it neatly into a ZIP file 📦. This comprehensive guide is here to equip you with everything you need to use Logicytics effectively.



❤️ Support Me ❤️

Please consider buying me a coffee or sponsoring me in GitHub sponsor, I am saving for my college funds in MIT, and I need your help! Supporters will be placed in the Credits ❤️

🛠️ Installation and Setup 🛠️

Installation and Setup

To install and setup Logicytics, follow these steps:

  1. Install Python: If you don't have Python installed, you can download it from the official website.
  2. Install Dependencies: Logicytics requires Python modules. You can install all the required modules by running the following command in your terminal: pip install -r requirements.txt

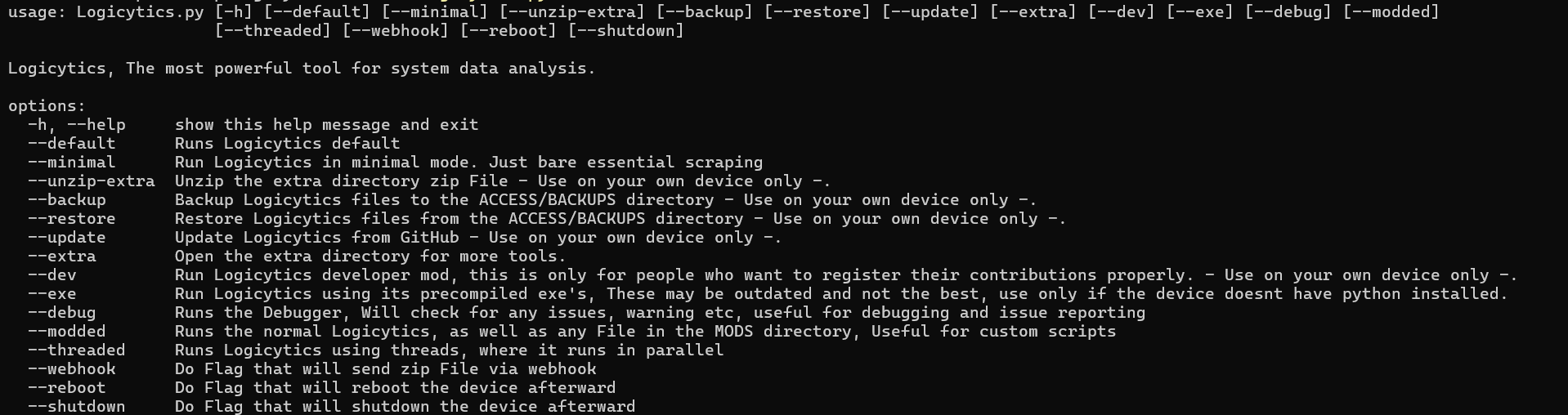

  3. Run Logicytics: To run Logicytics, simply run the following command in your terminal: python Logicytics.py -h - This opens a help menu.

Prerequisites

  • Python: The project requires Python 3.8 or higher. You can download Python from the official website.
  • Dependencies: The project requires certain Python modules to be installed. You can install all the required modules by running the following command in your terminal: pip install -r requirements.txt.
  • Administrative Privileges: To be able to run the program using certain features of the project, like registry modification, you must run the program with administrative privileges.
  • System Requirements: The project has been tested on Windows 10 and 11. It will not work on other operating systems.
  • Knowledge of Command Line: The project uses command line options for the user to interact with the program. It is recommended to have a basic understanding of command line options.
  • Optional: Have a USB drive or an external HDD available to store the gathered data, This project is best when stored in a USB and used on the root C:\ drive later on.

Step-by-Step Installation

  1. Install Python 🐍 If you don't have Python installed, you can download it from the official website. Make sure to select the option to "Add Python to PATH" during installation.
  2. Install Dependencies 📦 Logicytics requires Python modules. You can install all the required modules by running the following command in your terminal: pip install -r requirements.txt
  3. Run Logicytics 🚀 To run Logicytics, simply run the following command in your terminal: python Logicytics.py -h This opens a help menu.
  4. Run the Program 👾 Once you have run the program, you can run the program with the following command: python Logicytics.py -h Replace the flags with the ones you want to use. You Must use Admin!
  5. Wait for magic to happen 🧙‍♀️ Logicytics will now run and gather data according to the flags you used.
  6. Enjoy the gathered data 🎉 Once the program has finished running, you can find the gathered data in the "Data" folder.
  7. Share the love ❤️ If you like Logicytics, please consider sharing it with others or spreading the word about it.
  8. Contribute to the project 👥 If you have an idea or want to contribute to the project, you can submit an issue or PR on the GitHub repository.

Basic Usage

After running and successfully collecting data, you may traverse the ACCESS directory as much as you like, Remove add and delete files, it's the safest directory where your backups, hashes, data zips and logs are found.

Also watch this video for a better understanding of Logicytics

🔧 Configuration 🔧

Logicytics uses a config.json file to store configurations. The config.json is located in the CODE directory.

The config.json file is a JSON file that contains the following information:

{
"WEBHOOK URL": "",
"ipgeolocation.io API KEY": "",
"DEBUG": true,
"VERSION": "2.0.0",
"CURRENT_FILES": [
"browser_miner.ps1",
"driverquery.py",
"log_miner.py",
"media_backup.py",
"netadapter.ps1"
]
}

The config.json file is used to store the webhook URL, the API key for ipgeolocation.io, the DEBUG flag, the VERSION, and the CURRENT_FILES.

CURRENT_FILES is an array of strings that contains the names of the files you have, this is used to later check for corruption or bugs.

Do not modify CURRENT_FILES and VERSION unless you are developing extra add-ons

🚀 Advanced Usage 🚀

Mods

Mods are special files that are run with the --modded flag. These files are essentially scripts that are run after the main Logicytics.py script is run and the verified scripts are run.

They are used to add extra functionality to the script. They are located in the MODS directory. In order to make a mod, you need to create a python file with the .py extension or any of the supported extensions .exe .ps1 .bat in the MODS directory.

These file will be run after the main script is run. When making a mod, you should avoid acting based on other files directly, as this can cause conflicts with the data harvesting. Instead, you should use the Logicytics.py file and other scripts as a reference for how to add features to the script.

The --modded flag is used to run all files in the MODS directory. This flag is not needed for other files in the CODE directory to run, but it is needed for mods to run.

The --modded flag can also be used to run custom scripts. If you want to run a custom script with the --modded flag, you can add the script to the MODS directory, and it will be run with the --modded flag.

To check all the mods and how to make your own, you can check the Logicytics.py file and the WIKI. Also refer to the contributing.md for more info

🛑 Troubleshooting 🛑

If you are having issues, here are some troubleshooting tips:

Some errors may not necessarily mean the script is at fault, but other OS related faults like files not existing, or files not being modified, or files not being created.

Some tips are:

  • Check if the script is running as admin
  • Check if the script is not running in a VM
  • Check if the script has the correct permissions to run
  • Check if the script has the correct dependencies installed
  • Check if the script is not being blocked by a firewall or antivirus
  • Check if the script is not being blocked by a VPN
  • Check if the script is not being blocked by a proxy
  • Check if any of the scripts are not being modified or created
  • Check if the script is not being removed
  • Check if the script is not being blocked by any other software or service

If those don't work attempt:

  • Try running the script with powershell instead of cmd, or vice versa
  • Try running the script in a different directory
  • Try running the script in a different computer
  • Try running the script with a different python version above 3.8

Support Resources

Check out the GitHub wiki for help Check out the python documentation for help Check out the python subreddit for help Check out the python stackexchange for help when developing mods

📊 Data Analysis 📊

Data Extraction

Logicytics extracts a wide range of data points on a Windows system.

Here are some of the data points that Logicytics extracts:

  • System Information: System Specs, Local Admins, System Logs, Scheduled Tasks
  • User Information: User Profiles, User Logins, User Profiles, User Groups, User Sessions, User Activity
  • Network Information: Network Connections, Network History, Network Drivers, Network Drivers Information, Network Drivers Files, Network Drivers Certificates, Network Drivers Registry Keys, Network Adapters, Network Adapters Information, Network Adapters Files, Network Adapters Certificates, Network Adapters Registry Keys, Network Adapters Registry Keys (with values)
  • Software Information: Installed Programs, Installed Programs Files, Installed Programs Registry Keys, Installed Programs Certificates, Installed Programs Registry Keys (with values), Installed Programs Services, Installed Programs Services Files, Installed Programs Services Certificates, Installed Programs Services Registry Keys, Installed Programs Services Registry Keys (with values), Installed Programs Drivers, Installed Programs Drivers Files, Installed Programs Drivers Certificates, Installed Programs Drivers Registry Keys, Installed Programs Drivers Registry Keys (with values)
  • Service Information: Services, Services Files, Services Registry Keys, Services Registry Keys (with values), Services Drivers, Services Drivers Files, Services Drivers Certificates, Services Drivers Registry Keys, Services Drivers Registry Keys (with values)
  • Registry Information: Registry Keys, Registry Keys (with values), Registry Values, Registry Values (with data)
  • Drivers Information: Drivers, Drivers Files, Drivers Certificates, Drivers Registry Keys, Drivers Registry Keys (with values)
  • Files Information: Files, Files Certificates, Files Registry Keys, Files Registry Keys (with values)
  • Processes Information: Processes, Processes Files, Processes Registry Keys, Processes Registry Keys (with values)

This is not an exhaustive list, but it should give you a good idea of what data Logicytics is capable of extracting.

Want More?

If there is a specific piece of data that you would like to see extracted by Logicytics, please let us know. We are constantly working to improve the project and adding new features.

Other than mods, some prefixed tools are in the EXTRA directory, use the --extra flag to traverse these special tools

Want to create your own mod?

Check out the contributing guidlines file for more info

🌟 Conclusion 🌟

Logicytics is a powerful tool that can extract a wide variety of data from a Windows system. With its ability to extract data from various sources, Logicytics can be used for a variety of purposes, from forensics to system information gathering. Its ability to extract data from various sources makes it a valuable tool for any Windows system administrator or forensic investigator.

📣 Note

Please remember that extracting data from a system without proper authorization is illegal and unethical. Always obtain proper authorization before extracting any data from a system.
